Features

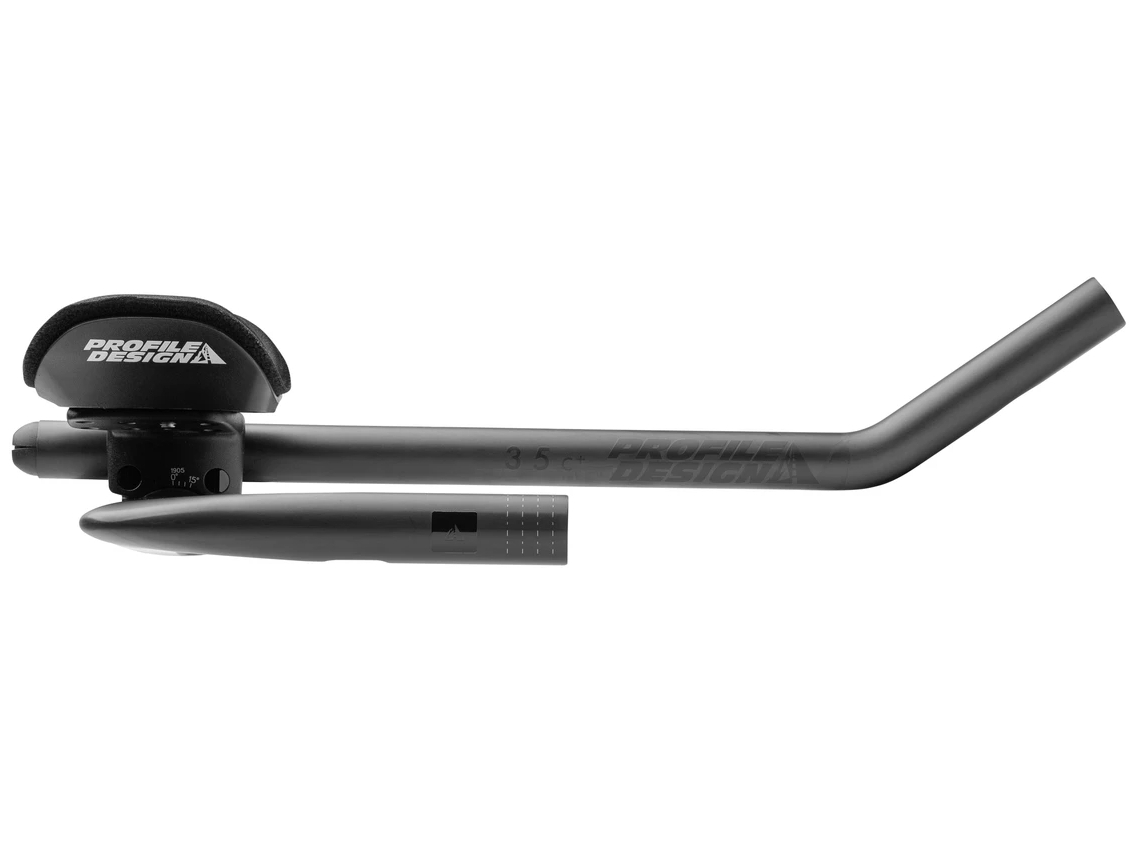

Improved and Refined Design – As the top aerobar in their line up the Aeria Ultimate II offers all the premium features that can squeeze into one product. Profile Design, on their never ending quest to provide cyclists with the best products available, have improved the comfort of the Aeria Ultimate and have significantly reduced the weight of their armrests and extensions.
Low And Narrow Position – Profile Design’s popular Ergo armrests have been refined to offer a more curved shape for a snug fit, as well as lower weight thanks to the resin construction. The 35C+ extensions offer a slightly higher rise than the original T4C and are, staggeringly, half the weight, saving a massive 120g in their uncut form. With the Race armrests fitted these bars are tailored towards riders who intend to be low and narrow to punch the smallest possible hole through the wind.
Refined Comfort – The Aeria Ultimate II offers a combination of aerodynamic integration and supreme fit range. With the change in spec, comfort for most users will be increased alongside the performance advantage of lower weight.
Armrest – The Ergo armrest is an integral part of the overall adjustability scheme. The dual offset design gives the most precise adjustment range of any armrest on the market. This, along with the evenly curved shape, allows it to work well for most riders. The Ergo armrest is a flippable design, by swapping sides or rotating the armrests, smaller increments of movement are achieved, making it simple to fine tune a rider’s position or match the position from your previous aerobar or bike.
Extensions – The 35C+ extensions offer a 35 degree angle with a low rise and 400mm length, suiting riders who prefer to adopt a wrist angle that is on the low side of the neutral range. Drilled for rear-exit cable routing, they offer the lowest weight of any current carbon extension thanks to the use of very high grade carbon and exhaustive testing.
Specifications
| Basebar Width | 42cm (Centre-to-Centre) |
|---|---|
| Bracket | Aeria Ultimate Forged |
| Armrest | Ergo (10mm pad) |
| Armrest Stack | 48mm to 128mm (5mm Increments) |
| Armrest Width | 124mm to 254mm (18.5mm Increments) |
| Extension Length | 400mm |
| Extension Rise | 80mm (bottom to top) |
| Extension Angle | 35° |
| Extension Outer Diameter | 22.2mm |
| Extension Inner Diameter | 19.4mm |
| Armrest Rotation | 7° |
| Bracket Tilt Adjustment | 0-15° |
| Pursuit OD/ID | 24.1 / 19.6mm |
| Construction | Carbon |
| Colour | Matte Black |
| Torque Settings | Extension Clamp: 5Nm Armrest Bolts: 4.7Nm Stem Clamp: 6Nm Max |
| Weight | Bracket: 204g (pair) Armrest: 141g (pair) Extensions: 142g (pair) Total: 780g (without stem or armrest risers) |
