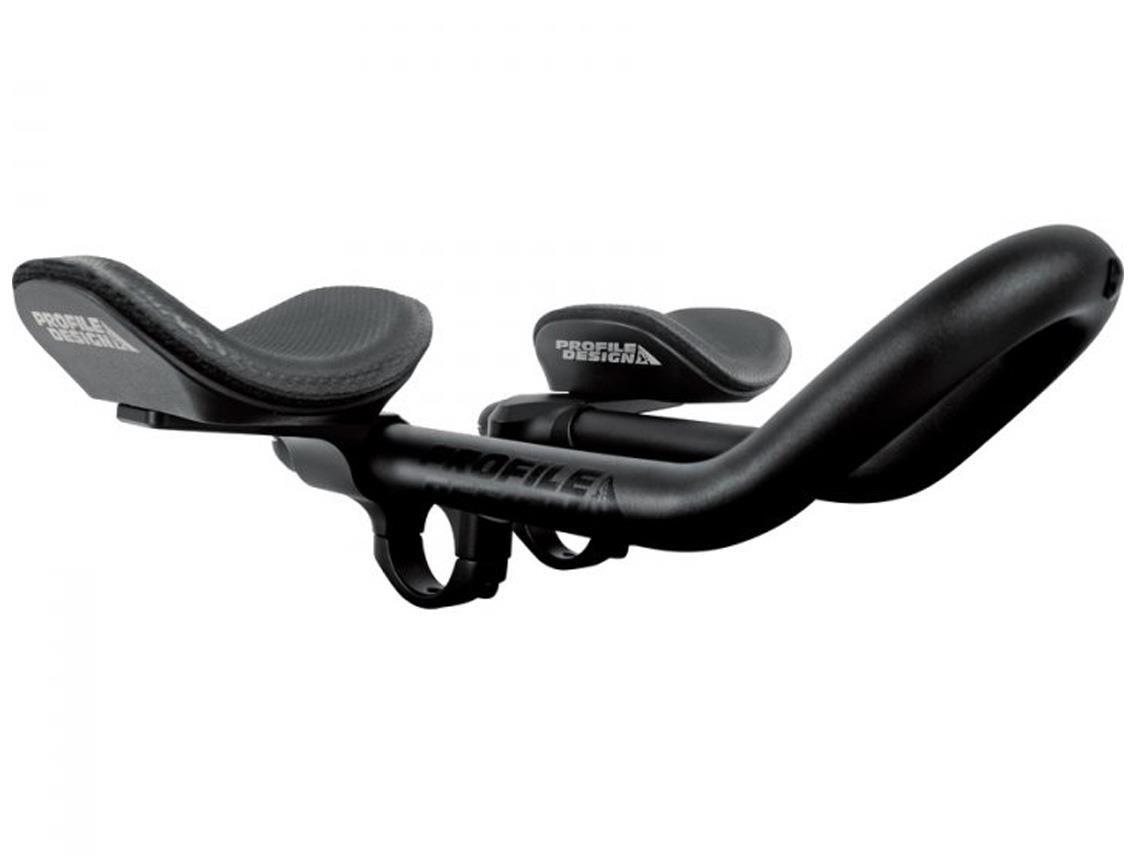

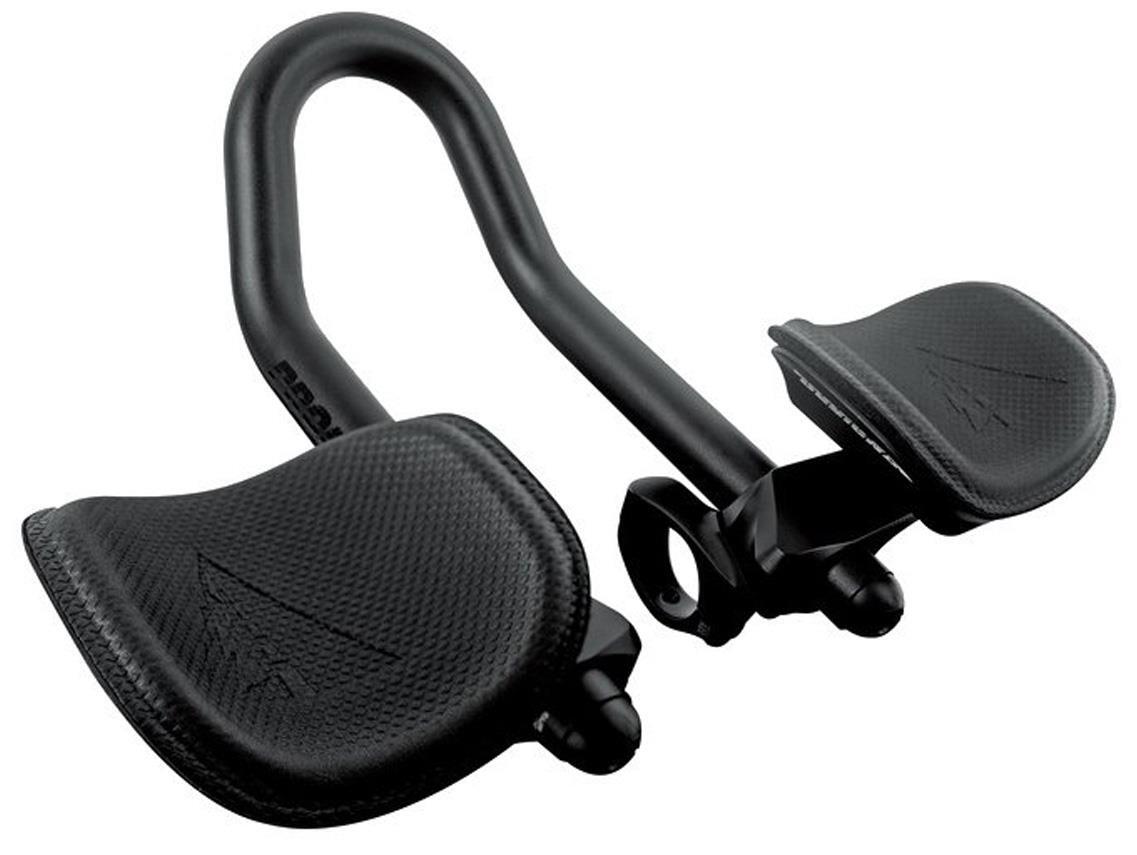

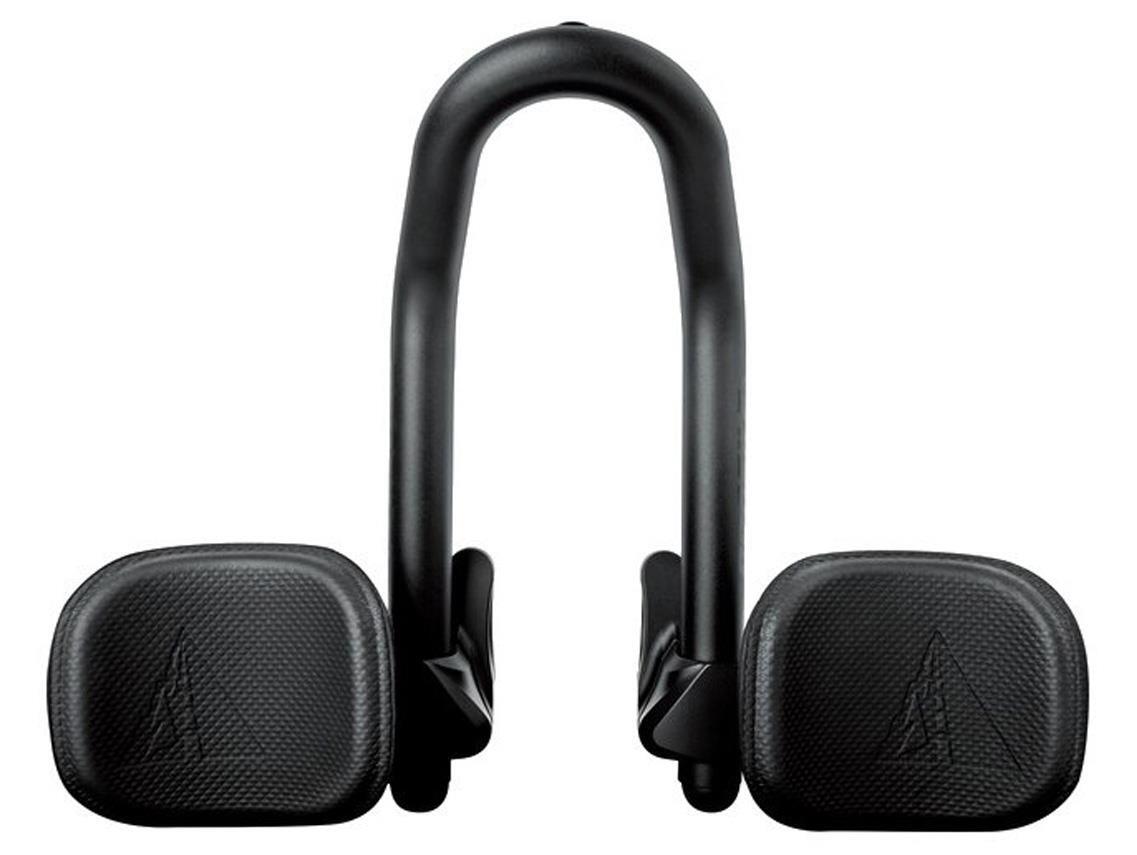

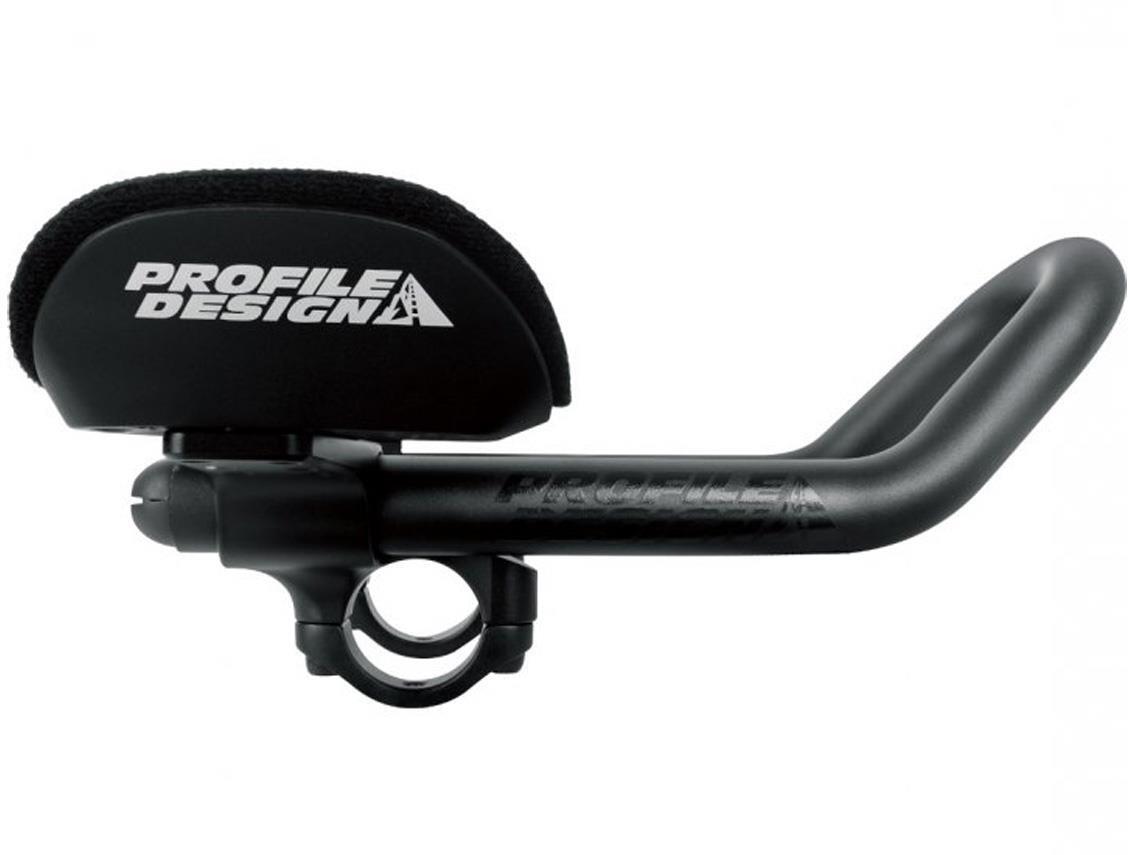

The Neosonic bracket offers their new generation fit range with a large offset to suit a range of applications.
Pairing this bracket with the ergo armrest offers industry leading fi t options and greater comfort. With the 45Ra extensions this is the most versatile DL style bar we’ve ever products.
The Neosonic/Ergo platform is designed to give riders the option to move the armrests well behind the basebar in order to adopt a compact position. This bar can be used for draft legal triathlon once shortened to meet the ITU rules.
Profile Design has a long history with shorty/DL style bars. This is their latest offering and the most adjustable yet. We wanted to create a bar that would be an easy and comfortable addition to road, gravel and packing bikes.
There are 80 distinct position options achievable just by moving the armrests – this gives an unprecedented level of adjustment for a shorty aerobar.
The Neosonic/Ergo/45ra aerobar offers comprehensive yet simple adjustment, ideally suited to riders wishing to add aerobars to their road, gravel or packing bike.
Specifications
| Bracket | Sonic |
|---|---|
| Clamp Diameter | 31.8mm (26.0 w/Shims) |
| Armrest | Ergo / 10mm Pads |
| Armrest Width | 124mm to 290mm in 18.5mm steps |
| Armrest Offset | -95mm to -42.5mm in 7.5mm steps |
| Armrest Stack | 59mm |
| Extension Width | 100mm |
| Colour | Matte Black |
| Weight | 555g |
| Handlebar Clamp | 31.8mm |
| Extension Clamp | 22.2mm |
| Torque Settings | Bar Clamp: 6Nm (53 inlbf) Extension Clamp: 5Nm (44 inlbf) Armrest Bolts: 4.7Nm (42 inlbf) |
