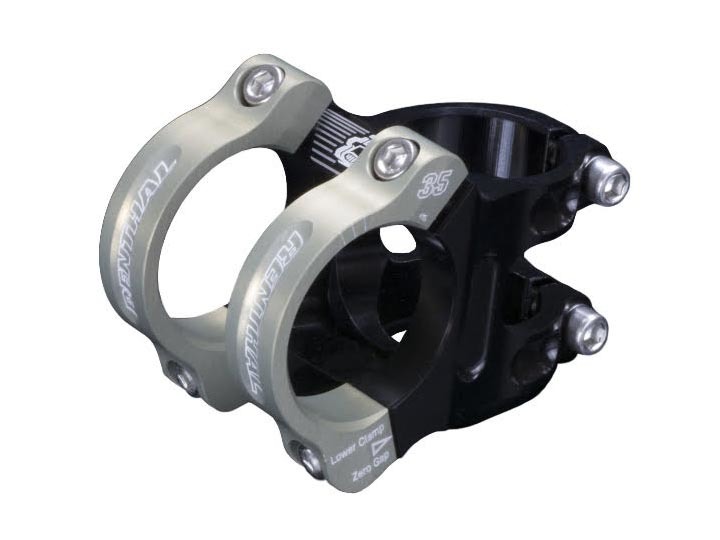

Renthal Apex 35 Stem

Race Winning Components

The Renthal Apex 35 combines All Mountain strength, Enduro stiffness and XC lightweight. Unique 240deg handlebar clamps allow much of the stem body material to be removed, whilst retaining the strength and stiffness demanded by modern, wide handlebars.

The Apex 35 is fully CNC machined, featuring an oversize centre bore, extensive machining and external webbing to maximise structural strength and stiffness and minimise weight.

Features

Handlebar Clamp – The Clamps are installed over the small diameter section of the handlebar and slide into the centre giving a 240° wrap of the handlebar.
Thezero gap lower clamp ensures maximium support of the handlebar, in this critical zone.

CNC Machined  – The Apex stem is fully CNC machined from solid billet.All unnecessary material is removed to minimise weight,whilst retaining maximum strenght and stiffness.The unique handlebar clampimg system opens up the front of the stem, allowing an oversize centre bore to increase stiffness and strenght.

Aluminium Tech  – The Renthal Apex is fully CNC machined from a solid billet of 2014 aluminium with 7075 aluminium clamps.
these materials and their heat treatment processes have been specifically chosen for this application to give the highest strength and durability

Perfect Fit – The Apex is available in a huge range of sizes from the shortest possible 31mm (33mm in Apex 35) in 10mm increments all the way up to 90mm.Additionally the Apex can be fitted either way up to give either 6° rsie or 6° drop


Race Winning – The Apex has been used with great success in the Enduro Worl Series.
Already five Enduro World Series overall champion titles have been won , with countless individual event victories along the way

High Quality Finish – After CNC machining, the stem components are anodised and laser marked to give a very high quality and durable finish.

Specifications

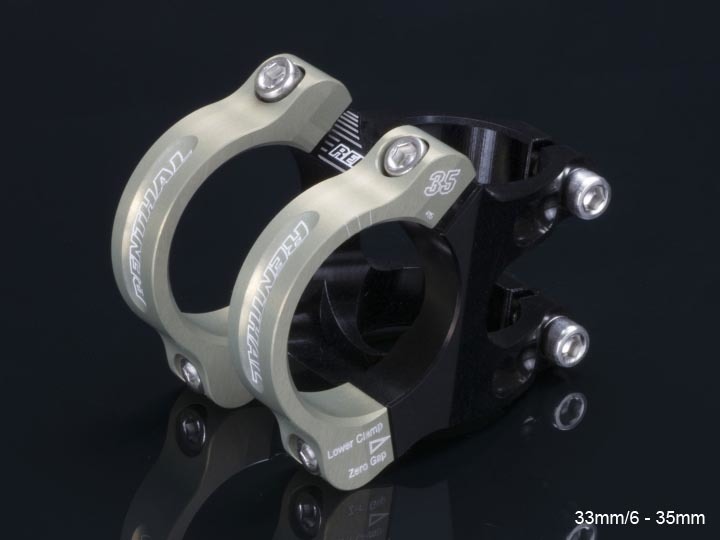

Apex 35 33mm

Weight: 112g

Rise: +/- 6°

Clamp width: 46mm

Stack Height: 40mm

Clamp diameter: 35mm

Steerer Clamp Diameter: 28.6mm

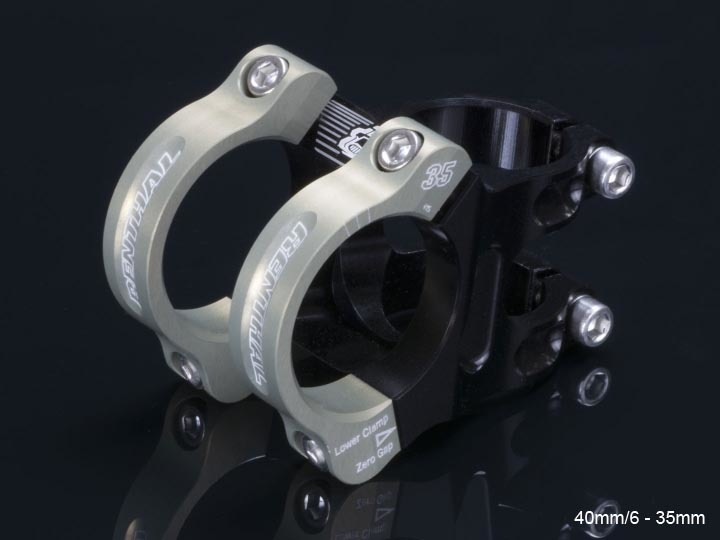

Apex 35 40mm

Weight: 122g
Rise: +/- 6°

Clamp width: 46mm

Stack Height: 40mm

Clamp diameter: 35mm

Steerer Clamp Diameter: 28.6mm

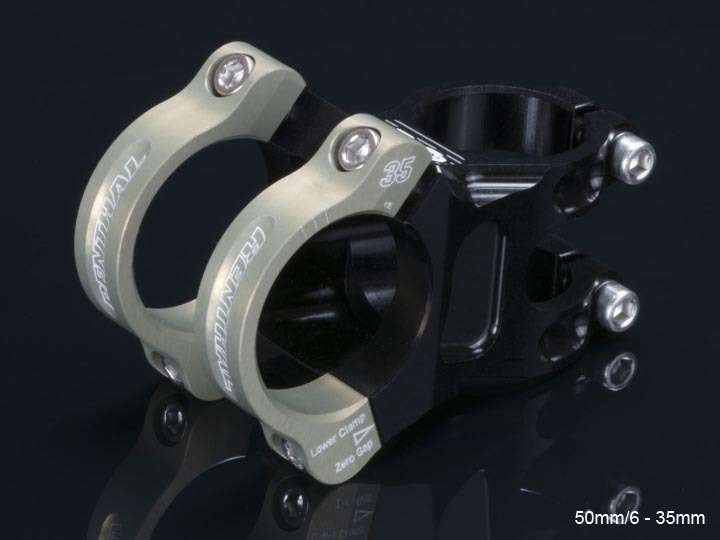

Apex 35 50mm

Weight: 136g

Rise: +/- 6°

Clamp width: 46mm

Stack Height: 40mm

Clamp diameter: 35mm

Steerer Clamp Diameter: 28.6mm

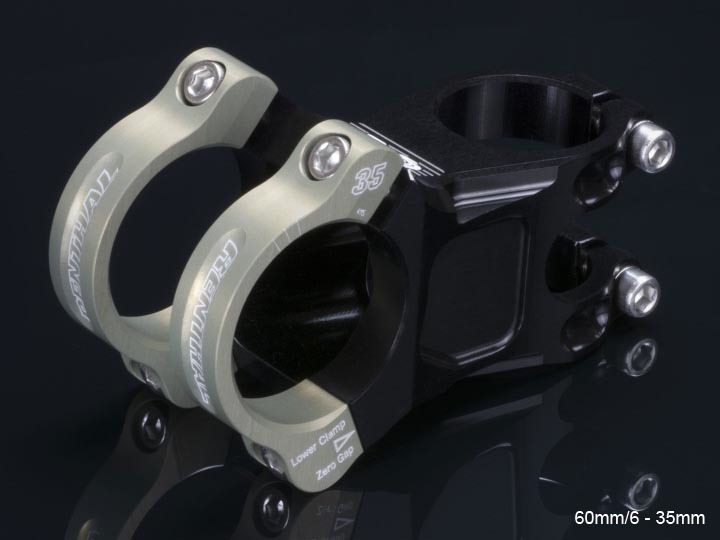

Apex 35 60mm

Weight: 147g

Rise: +/- 6°

Clamp width: 46mm

Stack Height: 40mm

Clamp diameter: 35mm

Steerer Clamp Diameter: 28.6mm
